Cube Wizard

This tutorial will guide you to create a cube. It need you have at least 1 sample table in Hive. If you don't have, you can follow this to create some data.

I. Create a Project

  1. Go to Model page in top menu bar, then click Manage Projects.

  2. Click the + Project button to add a new project.

  3. Enter a project name, e.g, "Tutorial", with a description (optional) and the overwritten Kylin configuration properties (optional), then click submit button.

  4. After success, the project will show in the table. You can switch the current project with the dropdown in the top of the page.

II. Sync up Hive Table

  1. Click Model in top bar and then click Data Source tab in the left part, it lists all the tables loaded into Kylin; click Load Table button.

    ![](../../images/tutorial/1.5/Kylin-Cube-Creation-Tutorial/4 +table.png)

  2. Enter the hive table names, separated with comma, and then click Sync .

  3. [Optional] If you want to browser the hive database to pick tables, click the Load Table From Tree button.

    ![](../../images/tutorial/1.5/Kylin-Cube-Creation-Tutorial/4 +table-tree.png)

  4. [Optional] Expand the database node, click to select the table to load, and then click Sync.

  5. In the left Tables section, the newly loaded table is added. Click the table name will shows the columns.

  6. In the background, Kylin will run a MapReduce job to calculate the approximate cardinality for the newly synced table. After the job be finished, refresh web page and then click the table name, the cardinality will be shown in the table info.

III. Create Data Model

Before creating a cube, you need to define a data model. The data model defines a star/snowflake schema. But it doesn't define the aggregation policies. One data model can be referenced by multiple cubes.

  1. Click Model in top bar, and then click Models tab. Click +New button, in the drop-down list select New Model.

    ![](../../images/tutorial/1.5/Kylin-Cube-Creation-Tutorial/6 +model.png)

  2. Enter a name for the model, with an optional description.

  3. In the Fact Table box, select the fact table of this data model.

  4. [Optional] Click Add Lookup Table button to add a lookup table. Select the table name and join type (inner join or left join).

  5. Click New Join Condition button, select the FK column of fact table in the left, and select the PK column of lookup table in the right side. Repeat this step if have more than one join columns.

  6. Click "OK", repeat step 4 and 5 to add more lookup tables if any. After finished, click "Next".

  7. The "Dimensions" page allows to select the columns that will be used as dimension in the cubes. Click the Columns cell of a table, in the drop-down list select the column to the list. Usually all "Varchar", "String", "Date" columns should be declared as dimension. Only a column in this list can be added into a cube as dimension, so please add all possible dimension columns here.

  8. Click "Next" go to the "Measures" page, select the columns that will be used in measure/metrics. The measure column can only from fact table. Usually the "long", "int", "double", "decimal" columns are declared as measures.

  9. Click "Next" to the "Settings" page. If the data in fact table increases by day, select the corresponding date column in the Partition Date Column, and select the date format, otherwise leave it as blank.

  10. [Optional] Choose whether has a separate "time of the day" column, by default it is No. If choose Yes, select the corresponding time column in the Partition Time Column, and select the time format.

  11. [Optional] If some conditions need to be applied when extracting data from Hive, you can input the condition in Filter.

  12. Click Save and then select Yes to save the data model. After created, the data model will be shown in the left Models list.

IV. Create Cube

After the data model be created, you can start to create a cube.

Click Model in top bar, and then click Models tab. Click +New button, in the drop-down list select New Cube.

Step 1. Cube Info

Select the data model, enter the cube name; Click Next to enter the next step.

You can use letters, numbers and '_' to name your cube (blank space in name is not allowed). Notification Email List is a list of email addresses which be notified on cube job success/failure. Notification Events is the status to trigger events.

Step 2. Dimensions

  1. Click Add Dimension, it pops up a window: tick columns that you need from FactTable and LookupTable. There are two options for LookupTable columns: "Normal" and "Derived" (default). "Normal" is to add a normal independent dimension column, "Derived" is to add a derived dimension column (deriving from the FK of the fact table). Read more in How to optimize cubes.

  2. Click "Next" after select all other dimensions.

Step 3. Measures

  1. Click the +Measure to add a new measure.

  2. There are 8 types of measure according to its expression: SUM, MAX, MIN, COUNT, COUNT_DISTINCT, TOP_N, EXTENDED_COLUMN and PERCENTILE. Properly select the return type for COUNT_DISTINCT and TOP_N, as it will impact on the cube size.

    • SUM

    • MIN

    • MAX

    • COUNT

    • DISTINCT_COUNT This measure has two implementations: a) approximate implementation with HyperLogLog, select an acceptable error rate, lower error rate will take more storage. b) precise implementation with bitmap (see limitation in https://issues.apache.org/jira/browse/KYLIN-1186).

    Pleaste note: distinct count is a very heavy data type, it is slower to build and query comparing to other measures.

    • TOP_N Approximate TopN measure pre-calculates the top records in each dimension combination, it will provide higher performance in query time than no pre-calculation; Need specify two parameters here: the first is the column will be used as metrics for Top records (aggregated with SUM and then sorted in descending order); the second is the literal ID, represents the entity like seller_id;

    Properly select the return type, depends on how many top records to inspect: top 10, top 100, top 500, top 1000, top 5000 or top 10000. Note: If you want to use TOP_N, you should also add a SUM measure for the "ORDER | SUM by Column". For example, if your creates a measure of Top100 seller_id by the sum of price, it is also should create a measure of SUM(price).

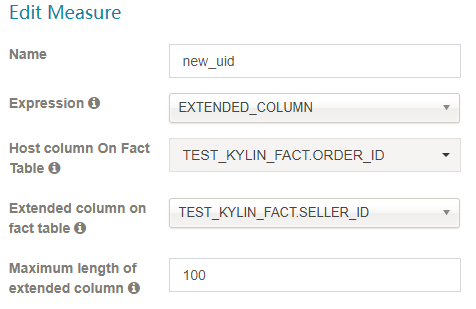

  • EXTENDED_COLUMN Extended_Column as a measure rather than a dimension is to save space. One column with another column can generate new columns.

  • PERCENTILE Percentile represent the percentage. The larger the value, the smaller the error. 100 is the most suitable.

Step 4. Refresh Setting

This step is designed for incremental cube build.

Auto Merge Thresholds: merge the small segments into medium and large segment automatically. If you don't want to auto merge, remove the default two ranges.

Volatile Range: by default it is 0, which will auto merge all possible cube segments, or 'Auto Merge' will not merge latest [Volatile Range] days cube segments.

Retention Threshold: only keep the segment whose data is in past given days in cube, the old segment will be automatically dropped from head; 0 means not enable this feature.

Partition Start Date: the start date of this cube.

Step 5. Advanced Setting

Aggregation Groups: The dimensions can be divided into multiple groups, each group is called an "agg group". By default Kylin put all dimensions into one aggregation group. When you have many dimensions, that will cause cube explosion. You can create multiple agg groups by knowing well about your query patterns. In each agg group, you can use the concepts of "Mandatory Dimensions", "Hierarchy Dimensions" and "Joint Dimensions" to further optimize the dimension combinations.

Mandatory Dimensions: Dimensions that appears always. For example, if all your queries have "ORDER_DATE" as the group by or filtering condition, then it can be marked as mandatory. The cuboids that doesn't have this dimension can be omitted for building.

Hierarchy Dimensions: For example "Country" -> "State" -> "City" is a logic hierarchy; The cuboids that doesn't comply with this hierarchy can be omitted for building, for example ["STATE", "CITY"], ["CITY"]. When defining a hierarchy, put the parent level dimension before the child level dimension.

Joint Dimensions:Some dimensions will always appear together, or their cardinality is close (near 1:1). For example, "user_id" and "email". Defining them as a joint relationship, then the cuboids only has partial of them can be omitted.

For more please read this blog: New Aggregation Group

Rowkeys: the rowkeys are composed by the dimension encoded values.

You can drag & drop a dimension column to adjust its position in rowkey; Put the mandatory dimension at the beginning, then followed the dimensions that heavily involved in filters (where condition). Put high cardinality dimensions ahead of low cardinality dimensions.

Mandatory Cuboids: Whitelist of the cuboids that you want to build.

Cube Engine: The engine for building cube. There are 2 engines: MapReduce and Spark. If your cube only has simple measures (COUNT, SUM, MIN, MAX), Spark can gain better performance; If cube has complex measures (COUNT DISTINCT, TOP_N), MapReduce is more stable.

Step 6. Configuration Overwrites

Kylin allows overwritting system configurations (conf/kylin.properties) at Cube level . You can add the key/values that you want to overwrite here. If you don't have anything to config, click Next button.

Step 7. Overview & Save

You can overview your cube and go back to previous step to modify it. Click the Save button to complete the cube creation.

Cheers! Now the cube is created, you can go ahead to build and play it.
